Vive Health

All Terrain Knee Walker

All Terrain Knee Walker

Regular price $208.99 USD
Regular price Sale price $208.99 USD
Sale Sold out

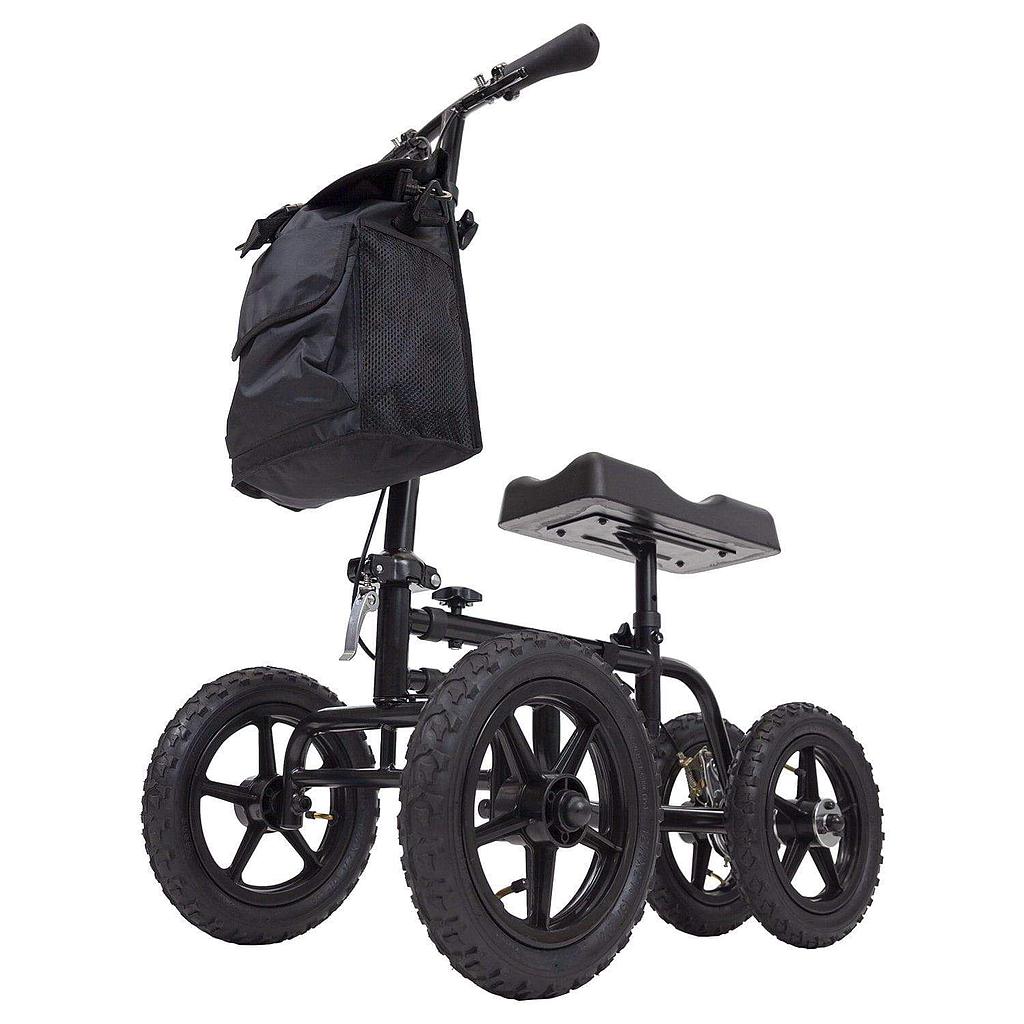

Providing an excellent alternative to crutches, the all-terrain knee walker allows individuals to safely navigate indoors and out with large, 12-inch air filled tires. Featuring a dual braking system and comfort grip steering handle, the knee scooter easily maneuvers over grass, pavement, carpeting and gravel.

FEATURES

  • Great Alternative To Crutches

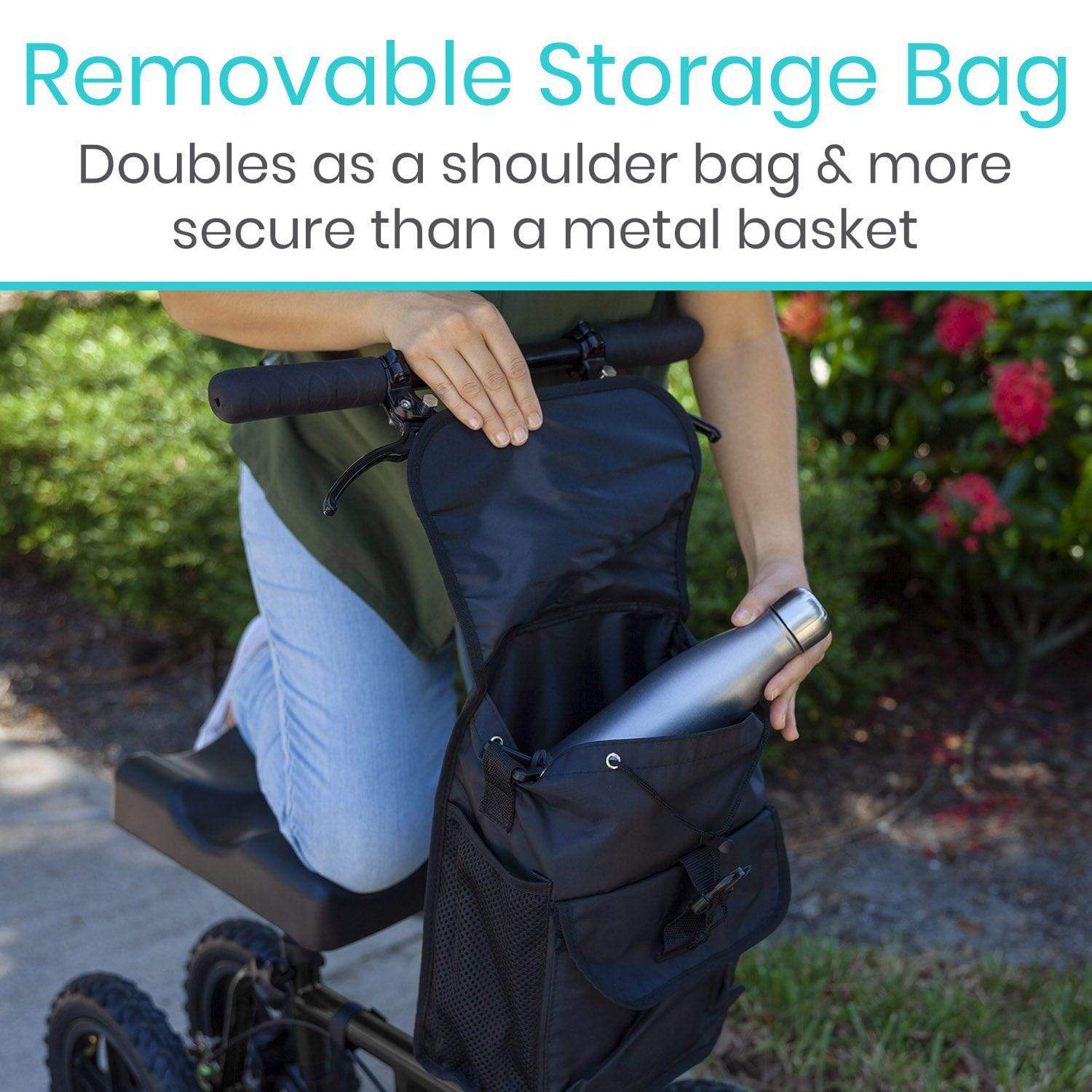

    Regain independence with the all-terrain, quad knee walker. Providing comfortable support following foot, ankle, or lower leg injury or surgery, the knee walker allows individuals to move safely and comfortably throughout the day while eliminating the fatigue and discomfort caused by using traditional crutches. For additional convenience, a storage bag is included that easily attaches to the walker to securely carry essential everyday items.

  • Maximum Stability And Control
    Four, 12-inch pneumatic wheels provide an exceptionally stable base for easy maneuverability on any surface, including carpet, gravel, grass, dirt and pavement. The knee walker also utilizes dual rear disk brakes to provide superior stability and control on uneven surfaces and gentle inclines.

  • Contoured Knee Pad
    Providing extra stability and support, the comfortable foam knee cushion is contoured to cradle the lower leg. The resilient foam platform allows the pressure to be evenly distributed across the knee platform,reducing pain and fatigue in the hip, knee and leg.

  • Lightweight Durability
    Safely supporting up to 300 pounds, the lightweight steel knee scooter is durable and fully adjustable for a customized fit. The cushioned knee platform height is adjustable between 20” to 26”. The steering handle is also adjustable from 38” to 46”. The removable knee platform and folding steering handle allow the scooter to easily be stored and transported as needed.

GENERAL SPECIFICATIONS

  • What's Included:

    • Knee walker

    • Storage bag

  •  Materials:

    • Matte black steel frame.

    • Resilient foam knee platform

  • Frame length: 35”

  • Frame width: 18”

  • Knee Pad Platform Dimensions: 19” - 23.5”

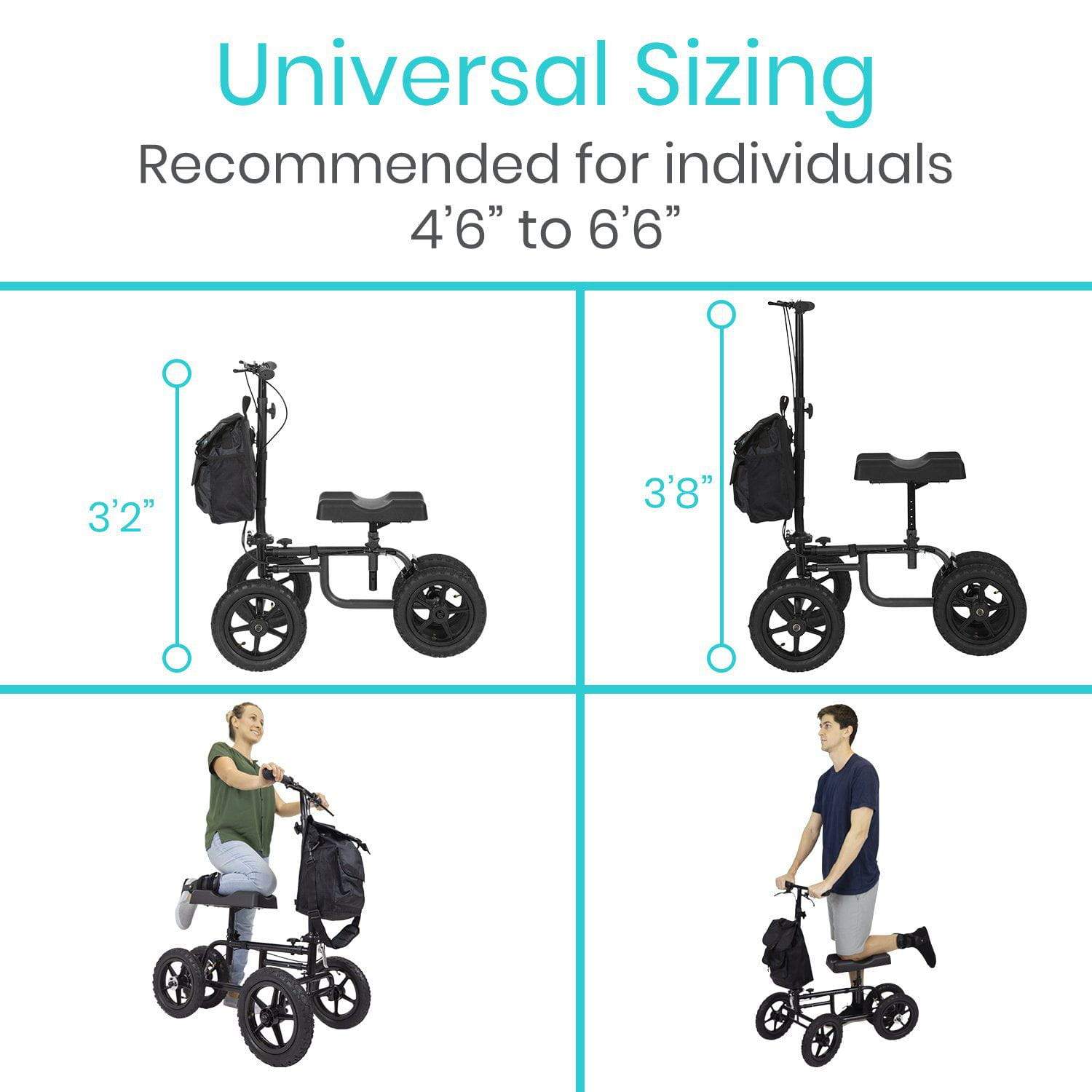

  • Knee Platform Height: 20" to 26"

  • Steering Handle Height: 38" to 46"

  • Wheels: 12”

  • Weight Capacity: Max 300 pounds

  • Handle Bars: 37” - 45.5”

  • Terrain Knee Walker: 5’ - 6” to 6’ - 6”



PRODUCT SPECIFICATIONS

  • Operating Instructions:

    • Center injured leg on the knee pad, covering the entire length of the padding.

    • Standing as straight as possible, propel yourself forward using your uninjured leg.

    • Engage the security lock before attempting to transfer from the knee walker.

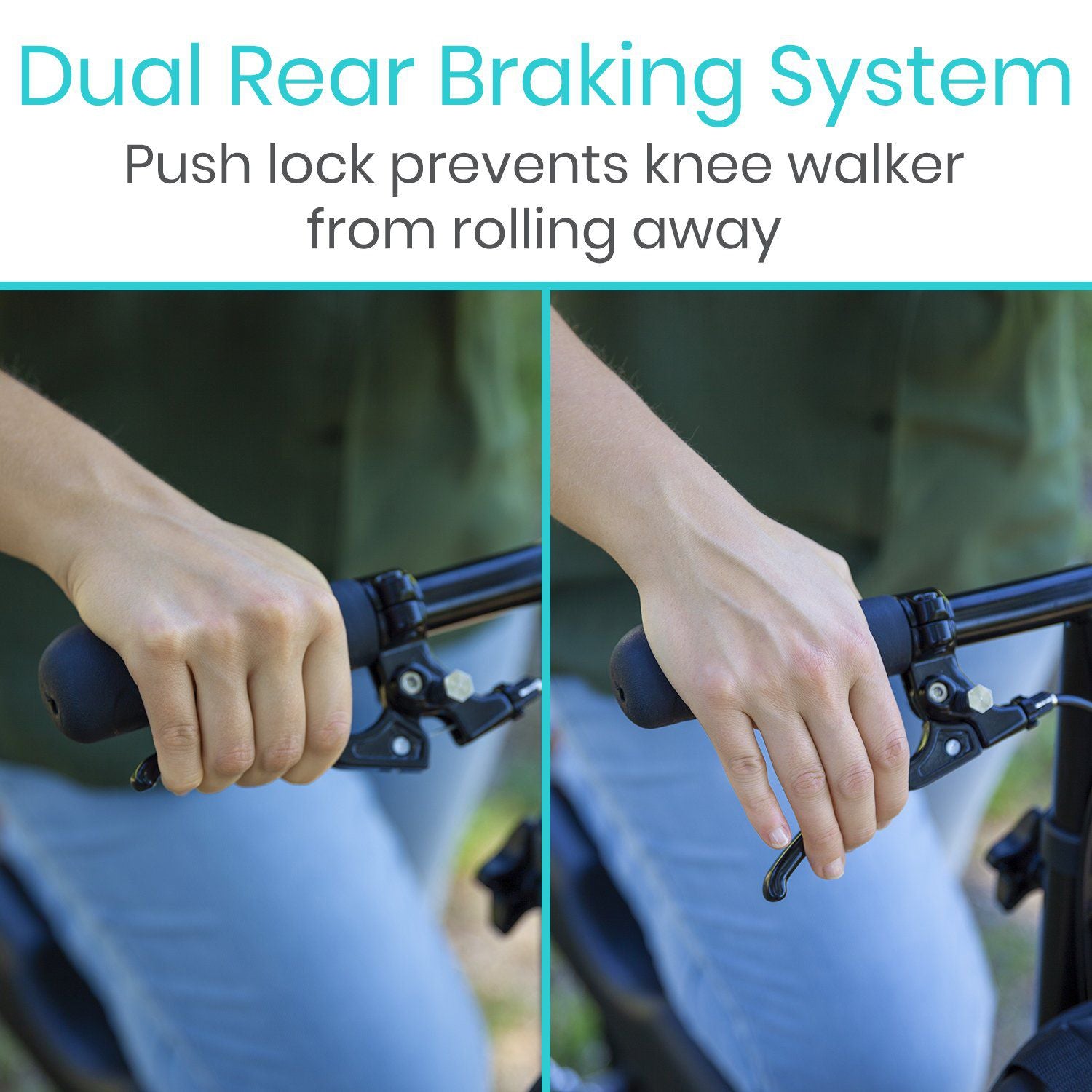

  • Braking:

    • To lock the hand brake, pull the brake lever on the handlebar towards you.

    • To lock the brake system, pull the brake lever towards you and push down on the locking pin on top of the lever. The pin will lock the wheels in place.

  • How to Adjust the Platform Height:

    • Loosen the locking lever under the knee pad and remove the locking pin.

    • Adjust knee pad to the desired height and replace locking pin to secure it in place.

  • How to Adjust the Handlebar Height:

    • Loosen the adjustment screw on the handle by turning it counterclockwise until it can be removed.

    • Adjust the handlebar grip to the desired height.

    • Tighten the adjustment screw.

  • How to Fold:

    • Pull up on the twist lock lever to unsecure the folding joint.

    • Twist the level counter-clockwise a couple of times to loosen the locking mechanism.

    • Fold down the twist-lock lever and slide it to the left to disengage the lock holding the steering column upright.

    • Push the steering column back into the folded position.

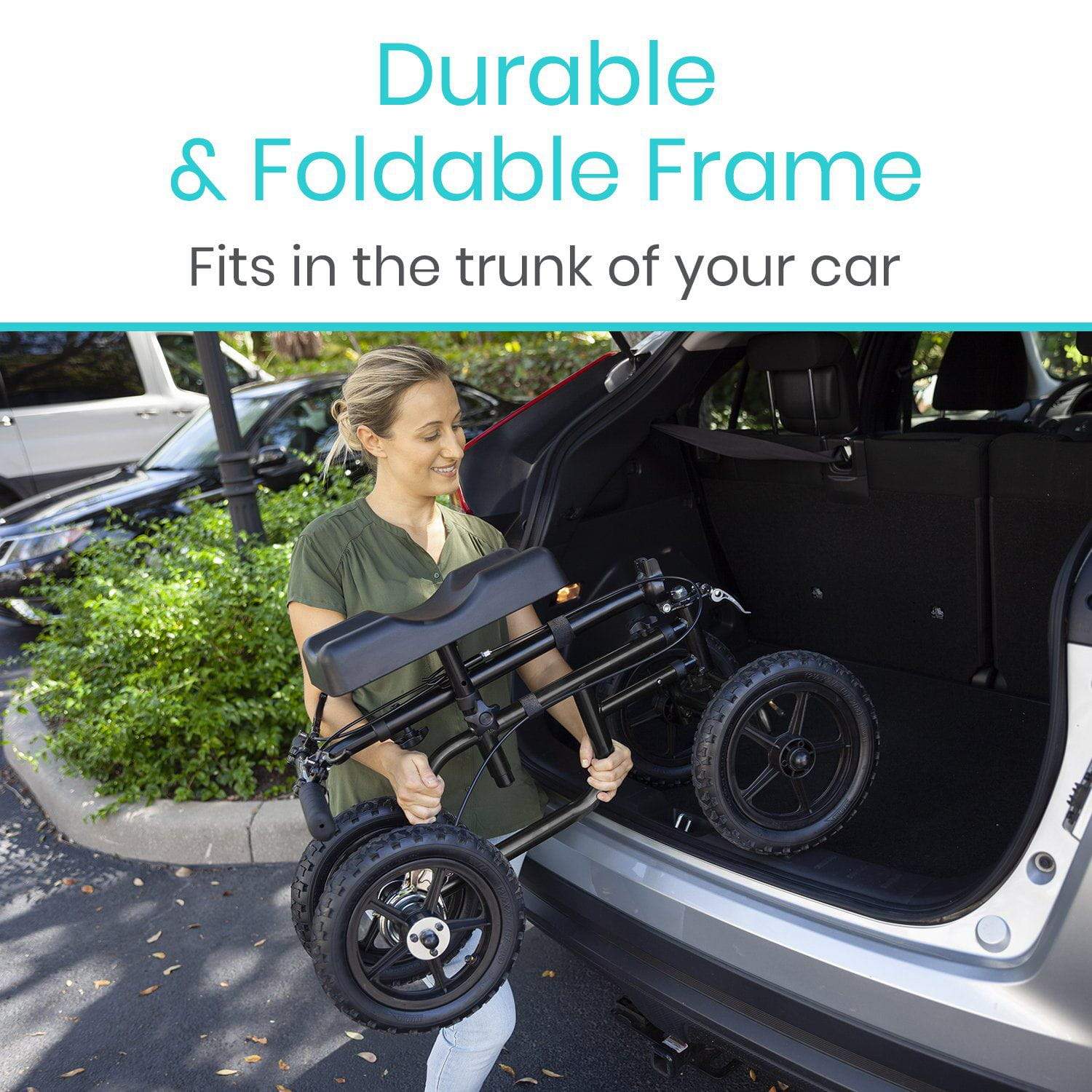

    • Remove the knee platform if necessary for more compact storage and portability.

WARRANTY POLICY

  • frame - 1 year

  • brakes / handles - 90 days

  • wheels - none / on arrival 30 days

  • screws / bolts / nuts - none / on arrival 30 days

  • cushions / seats - none / on arrival 30 days

  • paint / panels - none / on arrival 30 days



Owner's Manual: All Terrain Knee Walker
